Stainless Steel Press Drinking and Gas Pipe Fittings
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Terms of Trade: | FOB |
| Min. Order: | 10 Piece/Pieces |
| Delivery Time: | 30 Days |
| Packaging: | Export Packing |
|---|---|
| Productivity: | 3000000 |
| Brand: | ST |
| Transportation: | Ocean,Air |
| Place of Origin: | China |
| Supply Ability: | 3000000 |
| Certificate: | CE |
Basic Info
Model No.: STP GM5004
Material: Stainless Steel, Stainless Steel 304/304L,316L
Connection: Welding, Clamping
Size: 15,22,2,28,35,42,54,76.1,88.9,108
Certification: ISO9001:2000,CE
Quality Control: 100% Inspected
Shape: Equal
Brand Name: ST
Place Of Origin: Zhejiang, China (Mainland)
Type: Press Fitting
Pressure: 16Bar
Product Description
Stainless Steel Press Natural Gas Pipe Fittings Manufacturer
DIN M profile press fitting adapter with union nut is widely used in solar pipeline system,water supply system, drinking pipeline system, etc.
Compared with traditional pipeline system, it`s not only more economical, safer and healthier, but also easier and faster for installation with longer service life.
1 Press fitting range: Coupling-Equal Coupling,Reducing coupling,Slip coupling, oupling with male/ female threads;
Elbow-Elbow 90°,Elbow 45°, Reducing elbow,Elbow with plain end, Elbow with wall plate, Elbow with male/ female threads;
Tee-Equal tee, Reducing tee, Tee with wall plate, Tee with male/ female threads;
Other-cap, Pipe Bridge, Flange adapter.
2 Material: Stainless steel 304L, Edelstahl1.4306/ Edelstahl1.4301, AISI304L, Inox304L;
Stainless steel 316L, Edelstahl1.4404, AISI316L, Inox316L;
Galvanized carbon steel, Kohlenstoffstahl, ACCIAIO AL CARBONIO.
3 Size: size:3/8``-4``inch, thickness: 1.0--2.0mm
Size range:
GB1 series sizes: 15,18,22,28,35,42,54,76.1,88.9,108mm. (Same as DVGW W534:1995);
GB2 series` sizes: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm. (Same as JIS G 3448-1980).
4 Standard: Press fitting standard: (DIN)DVGW W534-1995; (JIS)JWWA G116:2001; GB/T 19228.1-2003
Pipe standard: DIN10312:2003; GB/T 19228.2-2003
5 O-Ring: O-ring sealing standard: CEN EN 681-1:2006; GB/T19228.3-2003
Chlorinated butyl rubber(CIIR), EPDM, HNBR, NBR and FKM, etc.
6 Galvanization: all carbon steel pipe fittings are plated with rust-resistant zinc.
7 Payment term: TT, irrevocable L/C at sight. Price term: FOB, CIF and CNF.

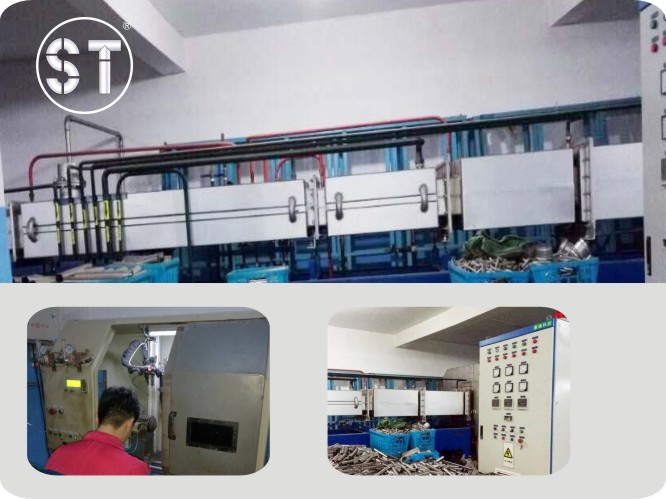

8 Anneal: all stainless steel pipe fittings are annealed in inert gases before packing.
9 Advantage: Press fitting is the best connection for thin wall stainless steel pipe, PE(X)-Al-PE(X) multiplayer pipe and SS-PE composite pipe.
Easy and fast installation with simple press tools can save time and improve job productivity and profitability.

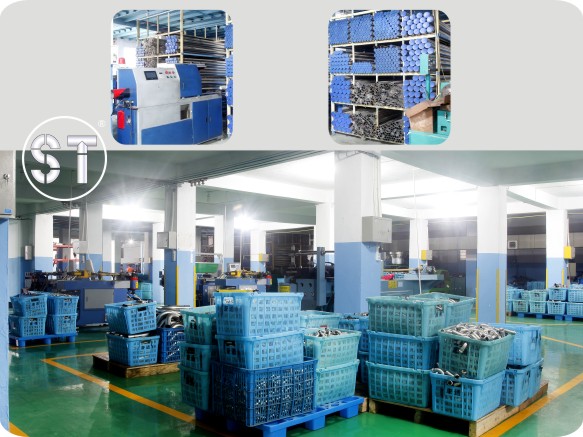

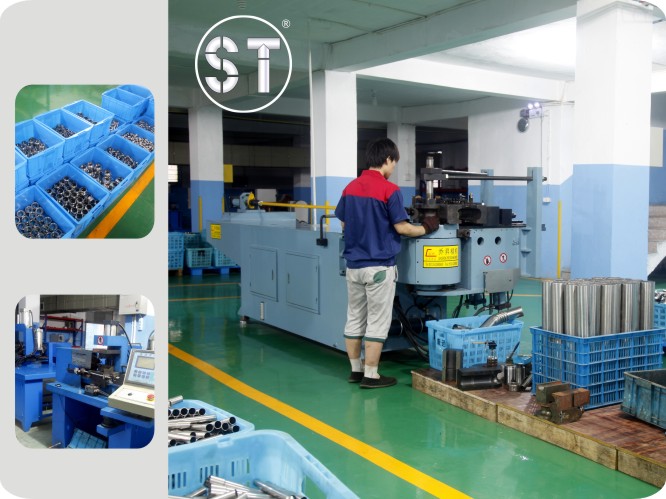

Factory
- 1
- 2
- 3
- 4
- 5

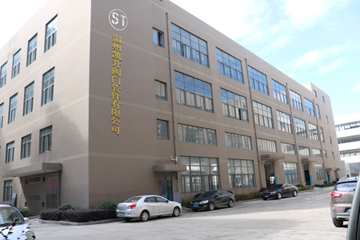

Wenzhou KASIN valve pipe fitting co.,ltd. located in Wenzhou City, is one of the few special factories which can produce high quality press pipeline systems in China.
KASIN is specialized in producing V-press fit thin-walled stainless steel tube and fittings, M-press fit thin-walled stainless steel tube and fittings,carbon steel tube and fittings.
KASIN M and V Press fitting pipeline systems are widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. Our pipes and fittings [KASIN" brand are adopted by many national key projects, such as the National Stadium (Nest), the Crown of East (Shanghai Expo), and so on. KASIN pipeline systems compared with traditional pipeline systems, it`s not only more economical, safer and healthier, but also easier and faster for installation with longer service life.
KASIN press pipeline systems can be made according to different fineness, material quality and standards, such as DIN, JIS,ASTM,GB. "Quality is First, Service is First" is our working ideal. KASIN adopts LGMazak Company's CNC processing machines, the most advanced production equipment, and have got ISO9001:2008 issued by UKAS, ISO14001 & ISO18001,CE. Our products are mainly exported to Europe, southern-east Asia, Australia,Middle East,other countries and areas.
We will offer quality products at best price with good services to our customers around the world. We are looking forward to cooperating with you.
Company Info
- Company Name: WENZHOU KASIN VALVE PIPE FITTING CO.,LTD
- Representative: Meiling Xu
- Product/Service: Press Fittings , Stainless Steel Pipe Press Fittings , Press Pipe Fittings , Carbon Steel Heating Pipe Press Fittings , Gas Press Pipe Fittings , Pipe Fittings
- Capital (Million US $): 1000000RMB
- Year Established: 2012
- Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): US$5 Million - US$10 Million
- No. of Production Lines: 10
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 5,000-10,000 square meters
- Factory Location: Wenzhou Ecomony & Technology Industrial Zone.Longwan Industrial District.China.325025
- Contact Person: Mr. Jim Song
- Tel: 86-577-86883336
