Low Voltage XLPE/PVC insulated electric wire and cable 70mm

Low Voltage XLPE/PVC insulated electric wire and cable 70mm

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1000 Meter
    Delivery Time: 30 Days
    Packaging: DRUMS
    Productivity: 100KM/M
    Brand: HUAYUAN YONGTONG
    Transportation: Ocean,Land,Air
    Place of Origin: BEIJING, CHINA
    Supply Ability: 100KM/M
    Certificate: CE,ISO,CCC
    HS Code: 8544601200
    Port: Tianjin Port,Shanghai Port,Qingdao Port

Basic Info

Model No.: VV

Type: Insulated

Conductor Type: Stranded

Application: Underground

Conductor Material: Copper

Sheath Material: Crosslinking

Insulation Material: XLPE

Material Shape: Round Wire

Range of Application: LSOH

Certification: VDE, RoHS, CCC, UL, CE, ISO9001

Brand: HUAYUAN YONGTONG

Product Description

XLPE/PVC insulated electric wire and cable 16mm 25mm 35mm 50mm 70mm

Product Description

Brief introduction for electrical wire and cable 16mm

PVC insulated electric wire and cable 16mm has the advantages of not only high mechanical strength, good ambient stress resistance, good electrical properties and anti-chemical corrosion, but also simple construction, light weight and convenient to use. XLPE power cable applies to electrical power transmission and distribution lines with A.C. rated voltage U 0 /U up to 35kV.

Standards of electric wire and cable 16mm

PVC insulated electric wire and cable 16mm price is manufactured in accordance with the standards of GB/T12706-2008 IEC 502.Our XLPE cable can also be produced according to special requirements put forward by clients.

The technical date of electrical wire and cable

Type

Cu or Al/XLPE/PVC, Cu or Al/XLPE/PVC/SWA/PVC,

Cu or Al/XLPE/LSZH, Cu or Al/XLPE/LSZH/SWA/LSZH,

Voltage

0.6/1 kV

Cores

1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E

Range of Nominal cross section

1.5 mm2 - 630 mm2

Application

It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground

Standard

IEC 60502, BS 7870, GB/T12706

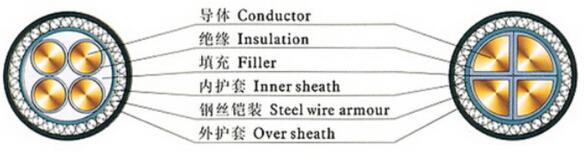

Constructions

Conductor:

Class 1/2 annealed bare copper solid or strands

Insulation:

XLPE

Armour:

Steel Wire Armour or Steel Tape Armour

Sheath:

PVC, PE or LSZH

Max. Operating Temperature

90 ℃, can be 105 ℃ and 110 ℃ as per requirement

Packing

Wooden drum or as per requirement

Specification for electric wire and cable

Cu Core

AL Core

Description

Application

VV

VLV

Cu(Al)Core PVC Insulated PVC Sheathed electric wire and Cable

For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure

VY

VLY

Cu(Al)Core PVC Insulated PE Sheathed electric wire and Cable

VV22

VLV22

Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed electric wire and Cable

For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure

VV23

VLV23

Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed electric wire and Cable

VV32

VLV32

Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed electric wire and Cable

For laying indoors, in wells and underwater, able to bear certain pulling force

LV CABLE

cooper

copper

IMG_20160708_103155_HDR

IMG_20160708_103123_HDR

IMG_20160708_102842_HDR

low voltage package

Usage

Payment

factory



1.Low Voltage Power Cable 2.Three Core Copper Conductor 3.Five Core Copper Conductor 4.Pvc Flexible Control Cable 5.750v Cable 6.0.6kv Cable

  • 1
  • 2
  • 3
  • 4
  • 5


Huayuan Gaoke Cable Co., Ltd. was established in 1998,located in Daxing District in Anhui China. The factory covers an area of over 20,000 square meters and has eighteen domestic and foreign advanced production equipments of power cables up to 110kv XLPE insulated Cables. Company successfully introduced aluminum alloys cable production lines, mineral insulated fire resistent cable production line and silicon rubber cables production line in 2012. The company aims to seek perfect quality, technological innovation, energy efficiency and environmental protection. Huayuan has become an up-rising star in Chinese high-tech enterprises of the cable. The enterprises adopted the ISO9001: 2008 quality management system certification, GB/T28001-2011 occupational health and safety management certification, ISO14001: 2004 environmental management certification, CCC certification, the national industrial production permit, qualified suppliers of electric supply bureau in Anhui and so on,the mineral insulated fire resitent cable pass BSI CERTIFICATE as BS 6387:2013,All products meet the national wire and cable standards.our cables had been exported to Southeast Asia, Europe, North America,South America for many key projects.

we warmly welcome all friends, specialists and professorsfrom all the world to visit, investigate, cooperate and exchange for technology and mutualbenefits in our company at any time.
